Specifications
Overall Size: 460X337X6 (WxHxD, mm)
Visual size: 400X277 (WxH, mm)
Casing: 6mm crystal frame with import PET poster
Colour: nature aluminum color or as you need
light source: high brightness EDGE lit 2835led light
poster printing: use the world's leading UV machine printing
Weatherproof: Yes, indoor wall mounted
Configuration: single side
Backlight: LED strips
Power Supply: 100-240VAC, suitable global country,
power adaptor: DC12V, with global certificate.
poster size : 420mmX297mm
| Model | Size | Specification(mm) | Thickness | Light source | Power | Power supplier | Note |
| Outer Size | Graphic size | View Size | (mm) | (W) |
| 0630 | A0 | 1229*881 | 1189*841 | 1169*821 | 6 | 2835 LED | 3.6W | DC12V | crystal frame |
| A1 | 881*634 | 841*594 | 821*574 | 6 | 2835 LED | 7.2W | DC12V | crystal frame |
| A2 | 634*460 | 594*420 | 574*400 | 6 | 2835 LED | 14.4W | DC12V | crystal frame |
| A3 | 460*337 | 420*297 | 400*277 | 6 | 2835 LED | 20W | DC12V | crystal frame |
| A4 | 337*290 | 297*210 | 277*190 | 6 | 2835 LED | 28.5W | DC12V | crystal frame |
Features
1. Acrylic frame, led backlit advertisement poster display light
box
2. Fashionable appearance
3. High quality optical acrylic sheet lens, even illumination light
guide panel(LGP) in middle. LGP combine with CNC engraving
technology, improve the uniform and brightness than traditional
technology.
4. Light source: High bright LED light strip inside, long lifespan
and energy-saving.

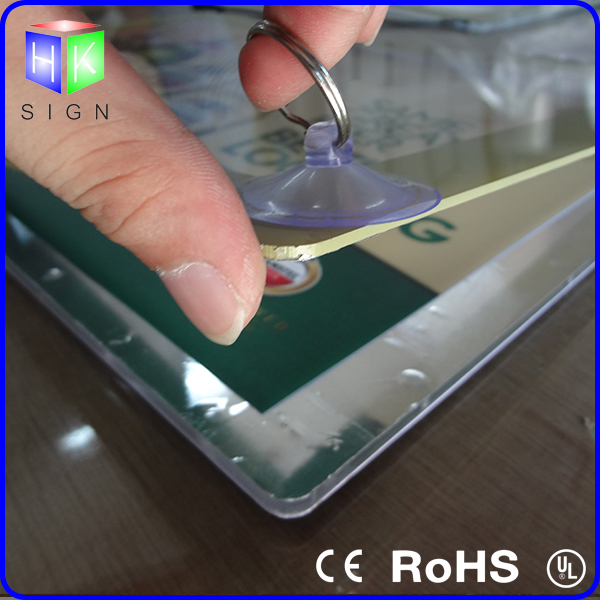

5.Magnetic open,easy to change picture.
6. Electric pressure: Input, AC110V-240V, Output, DC12V.
7. Silver Frame designed to show beautiful
8. Super-slim, advanced optical lightpanel, even illumination.
9. 80% energy saving comparing with the common fluorescent lamp
source.
10. LED light box use avirulent material, non-Hq, acrylic can
recycled, environment friendly
11. You can send us the size your want, as customized sizes
available.
Application:
The LED Light Box is popular for hotel decorative light box, bar
lighting signboard, fast-food restaurant menu, chain-store interior
decoration, marriage picture frame, individual photograph frame,
home decoration, brand name signboard display, gift show, showcase,
product exhibition, indoor advertising poster frames, movie poster
display, etc

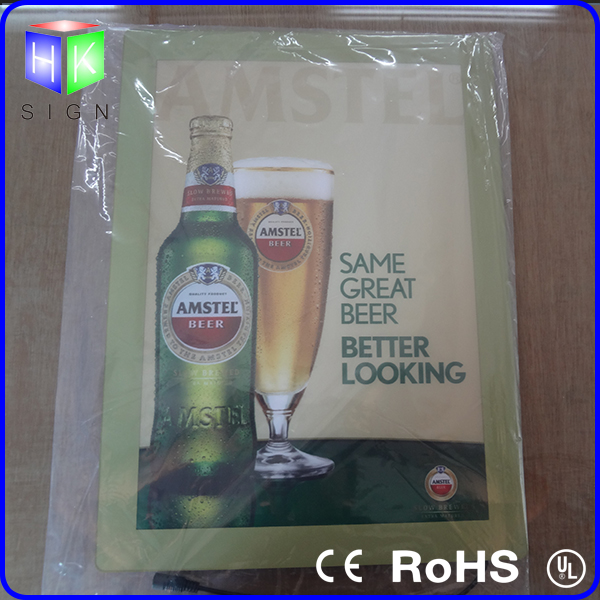

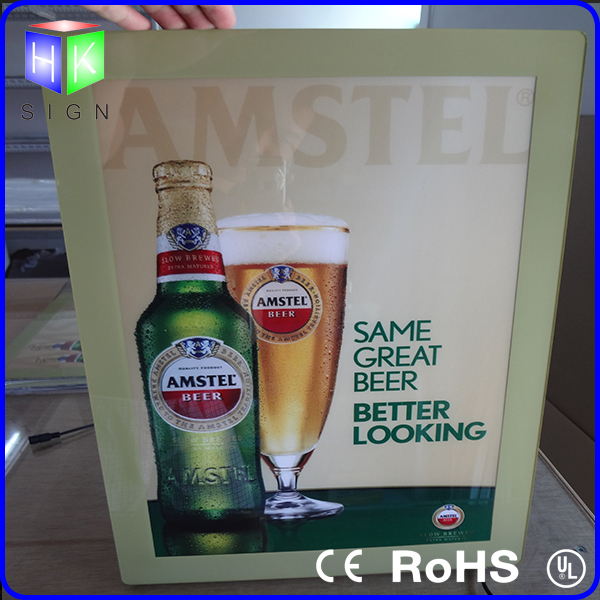

more picture show
